A型带灯 18mm

EN175301-803(DIN43650)

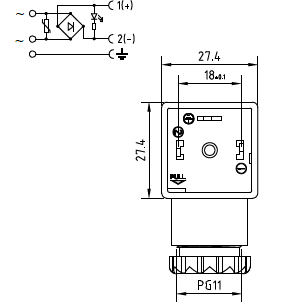

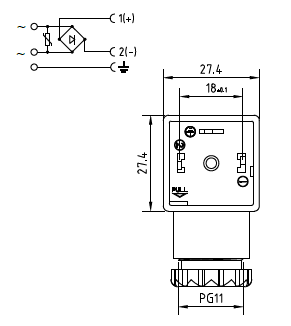

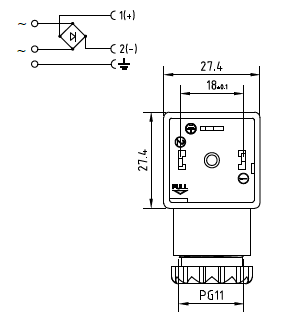

Technical drawing

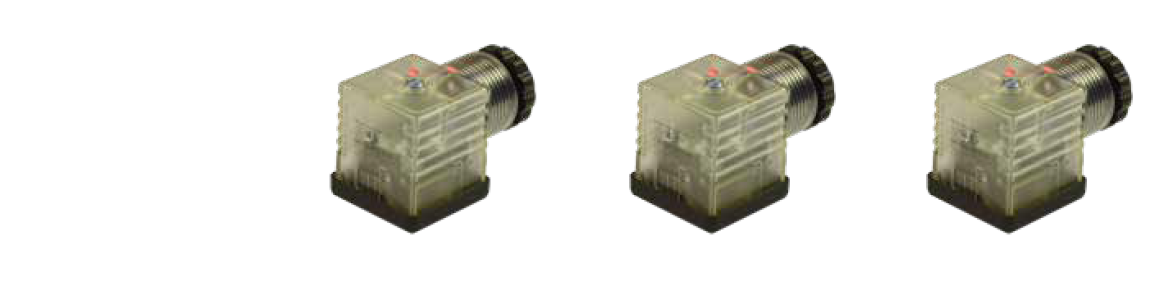

Product description
Connector type	DIN valve connectors			DIN valve connectors			DIN valve connectors
Conforms to	EN175301-803			EN175301-803			EN175301-803
Construction type	A			A			A
Part number	G1TU2L01	G1TU2L02	G1TU2L03	G1TU2DL1	G1TU2DL2	G1TU2DL3	G1TU2VL1	G1TU2VL2	G1TU2VL3
Description	Square connector G1 series complete with gasket and fixing screw. Connector with electronic.			Square connector G1 series complete with gasket and fixing screw. Connector with electronic.			Square connector G1 series complete with gasket and fixing screw. Connector with electronic.
Contacts spacing	18mm			18mm			18mm
Number of contacts	2poles + P.E.			2poles + P.E.			2poles + P.E.
Earth positioning	H.12 (turnable)			H.12 (turnable)			H.12 (turnable)
Housing colour	Transparent			Transparent			Transparent
Housing height	30mm			30mm			30mm
Cable gland	PG9/PG11 unified			PG9/PG11 unified			PG9/PG11 unified
Gasket type	Profiled NBR gasket			Profiled NBR gasket			Profiled NBR gasket
Technical data
Type of termination	Screw contacts			Screw contacts			Screw contacts
Contact screw torque	0.5 N*m			0.5 N*m			0.5 N*m
Rated voltage	24V AC/DC	115V AC/DC	230V AC/DC	24V DC	115V DC	230V DC	24V AC/DC	115V AC/DC	230V AC/DC
Circuit type	Bipolar Led			Led + Diode(1A)			Bipolar Led + Varistor
Led colour	Red			Red			Red
Suitable cable	? cable 6-10mm			? cable 6-10mm			? cable 6-10mm
Central fixing screw	M3 L=32.5mm			M3 L=32.5mm			M3 L=32.5mm
Central fixing screw material	Iron+Zinc plated			Iron+Zinc plated			Iron+Zinc plated
Central screw torque	0.5 N*m			0.5 N*m			0.5 N*m
Packaging
Qty/Box	50pcs / box			50pcs / box			50pcs / box
Other accessories options
See accessories section
Notes: Connector available with different led colour

~ ~	~ ~			~ ~

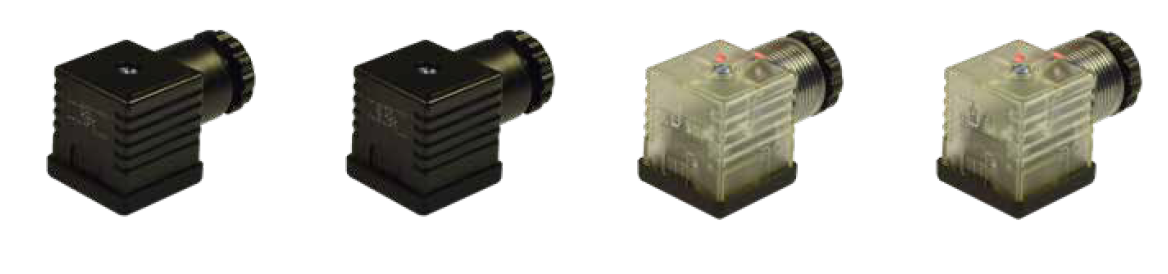

Product description
DIN valve connectors	DIN valve connectors			DIN valve connectors			DIN valve connectors
EN175301-803	EN175301-803			EN175301-803			EN175301-803
A	A			A			A
G1NU2R03	G1NU2RV1	G1NU2RV2	G1NU2RV3	G1TU2RL1	G1TU2RL2	G1TU2RL3	G1TU3Q01	G1TU3Q02	G1TU3Q03
Square connector G1 series complete with gasket and fixing screw. Connector with electronic.	Square connector G1 series complete with gasket and fixing screw. Connector with electronic.			Square connector G1 series complete with gasket and fixing screw. Connector with electronic.			Square connector G1 series complete with gasket and fixing screw. Connector with electronic.
18mm	18mm			18mm			18mm
2poles + P.E.	2poles + P.E.			2poles + P.E.			3poles + P.E.
H.12 (turnable)	H.12 (turnable)			H.12 (turnable)			H.12 (turnable)
Black	Black			Transparent			Transparent
30mm	30mm			30mm			30mm
PG9/PG11 unified	PG9/PG11 unified			PG9/PG11 unified			PG9/PG11 unified
Profiled NBR gasket	Profiled NBR gasket			Profiled NBR gasket			Profiled NBR gasket
Technical data
Screw contacts	Screw contacts			Screw contacts			Screw contacts
0.5 N*m	0.5 N*m			0.5 N*m			0.5 N*m
1-230V AC	24V AC	115V AC	230V AC	24V AC	115V AC	230V AC	24V DC	115V DC	230V DC
Full-Wave Bidge Rectifier (1A)	Full-Wave Bridge Rectifier + Varistor			Full-Wave Bridge Rectifier + Varistor + Led			Bicolour Led + no.2 Diodes (1A)
-	-			Red			Red (pin 2) ; Green (pin3)
? cable 6-10mm	? cable 6-10mm			? cable 6-10mm			? cable 6-10mm
M3 L=32.5mm	M3 L=32.5mm			M3 L=32.5mm			M3 L=32.5mm
Iron+Zinc plated	Iron+Zinc plated			Iron+Zinc plated			Iron+Zinc plated
0.5 N*m	0.5 N*m			0.5 N*m			0.5 N*m
Packaging
50pcs / box	50pcs / box			50pcs / box			50pcs / box
Other accessories options
See accessories section
Notes:				Connector available with different led colour			Connector available with different led connection: Q8 circuit (Green pin 2; Red pin 3) Q1 circuit (Yellow pin 2; Green pin 3)
